CCS2 to CCS1 DC Fast Charging Connector Adapter for Electric Cars Vehicles

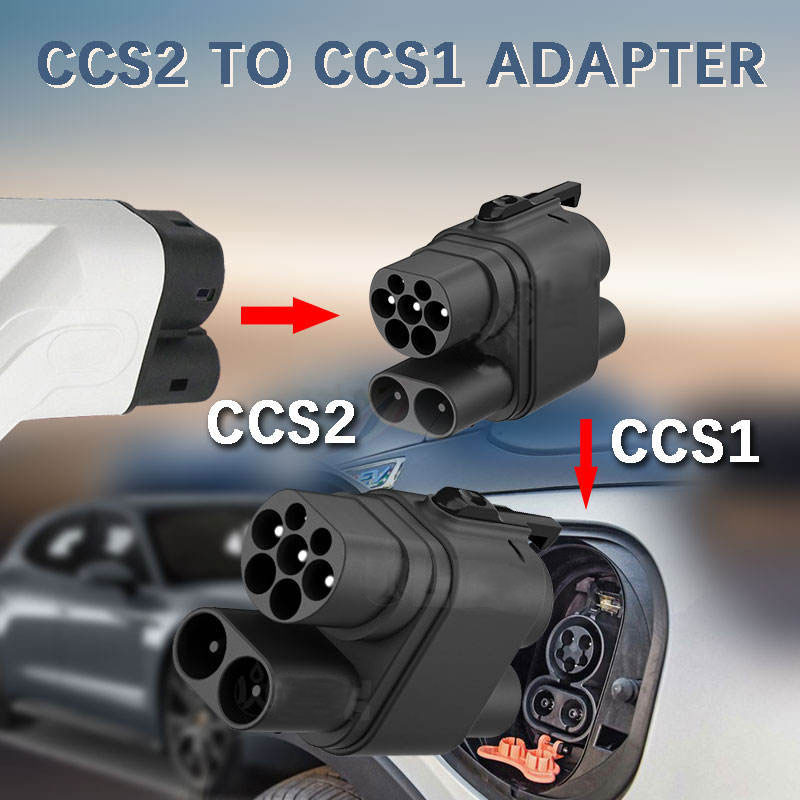

What is EV CCS2 to CCS1 adapter?
The EV CCS2 to CCS1 adapter is a device that allows an electric vehicle (EV) with a CCS2 (combined charging system) charging port to connect to a CCS1 charging station. CCS2 and CCS1 are different types of charging standards used in different regions. CCS2 is mainly used in Europe and other parts of the world, while CCS1 is commonly used in North America and some other regions. Each standard has its own unique plug design and communication protocol. The purpose of the EV CCS2 to CCS1 adapter is to bridge the incompatibility between these two charging standards, enabling electric vehicles with CCS2 ports to charge at CCS1 charging stations. This is very useful for electric vehicle owners who are traveling or face a situation where only CCS1 charging stations are available. The adapter essentially acts as an intermediary, converting the signal and power flow from the vehicle's CCS2 charging port to be compatible with the CCS1 charging station. This allows electric vehicles to charge normally using the power provided by charging stations.

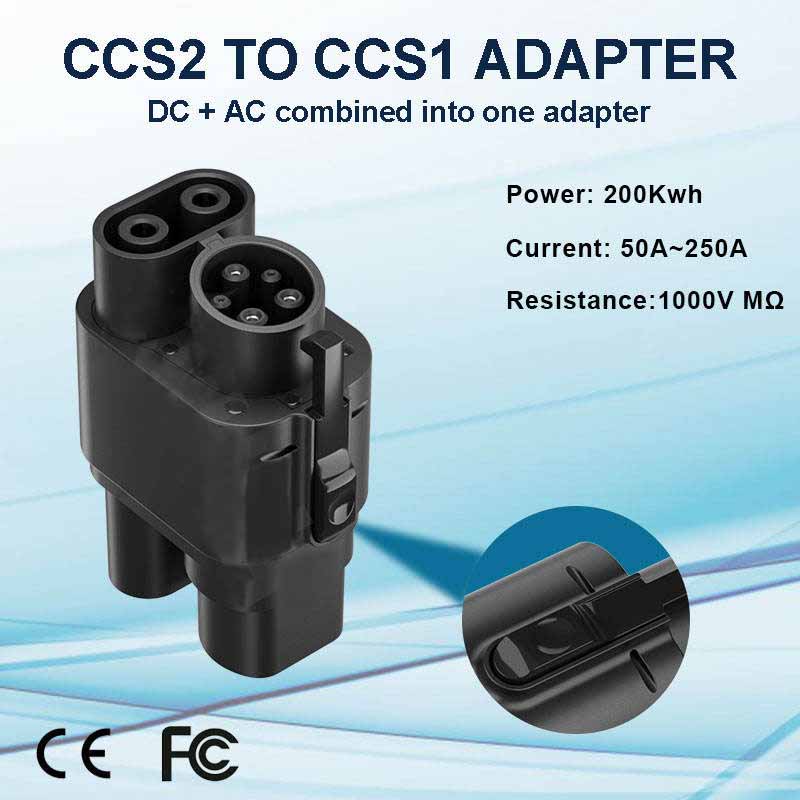

EV CCS2 to CCS1 Adapter Technical Data
|
Model No. |
EV CCS2-CCS1 Adapter |
|
Place of Origin |
Sichuan, China |
|
Brand |
OEM |
|
Voltage |
300V~1000V |
|
Current |
50A~250A |
|
Power |
50KWH~250KWH |
|
Operating Temp. |
-20 °C to +55 °C |
|
QC Standard |
Meet the provisions and requirements of IEC 62752, IEC 61851. |
|
Safety Lock |
Available |
Why choose Keliyuan’s EV CCS2 to CCS1 adapter?
Compatibility: Ensure that the adapter is compatible with your EV model and charging station. Check the adapter's specifications and compatibility list to confirm that it supports your specific requirements.
Quality and Safety: Keliyuan’s adapter that is built with high-quality materials and has passed safety certifications. It is crucial to prioritize the safety of your vehicle and charging equipment during the charging process.
Reliability: Keliyuan is a reputable and trusted manufacturer with more than 20 year experience in power supply designing and manufacturing.

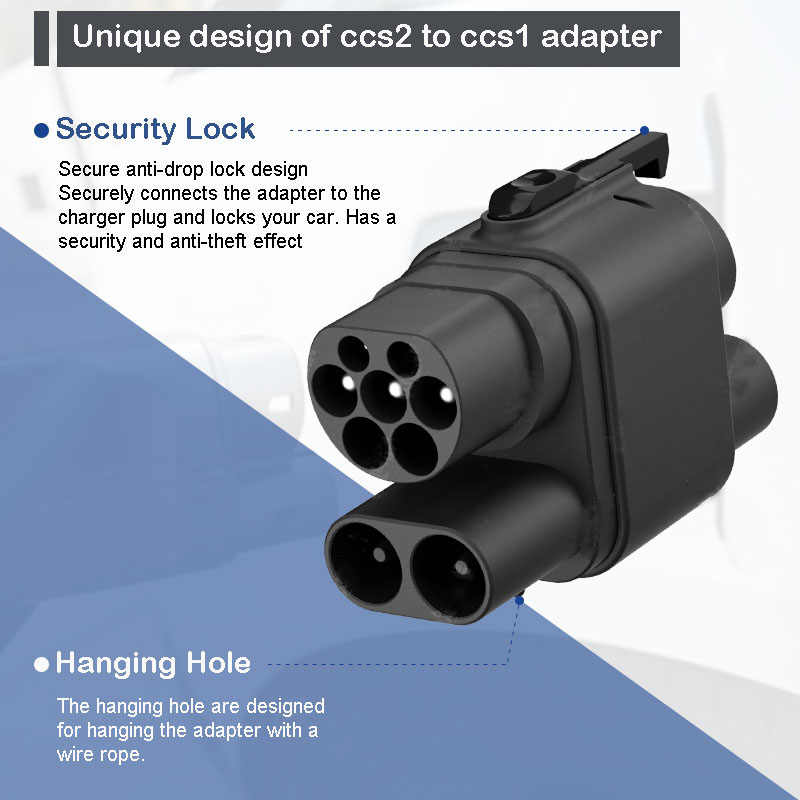

User-friendly Design:Keliyuan’s adapters that are easy to use and provide a seamless charging experience.The adapter is ergonomic design, secure connection mechanisms, and clear indicator lights.
Support and Warranty: Keliyuan has strong technical and after-sales support and warranty policies. Ensure to offer reliable customer support and a warranty to cover any potential issues or defects.
Packing:
Q’ty/Carton: 10pcs/carton
Gross Weight of Master Carton:20kg/carton
Master Carton Size: 45*35*20cm
