What is portable EV charger?

A portable electric vehicle charger, also known as a mobile electric vehicle charger or portable EV charger, is a device that allows you to charge an electric vehicle (EV) while on the go. Its lightweight, compact and portable design enables you to charge your electric vehicle anywhere there is a power source. Portable EV chargers usually come with different plug types and are compatible with various EV models. They provide a convenient solution for EV owners who may not have access to a dedicated charging station or who need to charge their vehicle while traveling.

How to choose EV chargers?

Charging speed: The charger has to offer a high charging speed, as this will allow you to charge your EV quickly. Level 2 chargers, which use a 240V outlet, are generally faster than Level 1 chargers, which use a standard 120V household outlet. Higher power chargers will charge your vehicle faster, but you'll need to make sure your vehicle can handle the charging power.

Power supply: Different charging powers require different power supplies. 3.5kW and 7kW chargers require a single-phase power supply, while 11kW and 22kW chargers require a three-phase power supply.

Electric current: Some EV chargers have the ability to adjust the electric current. This is very useful if you have a limited power supply and need to adjust the charging speed.

Portability: Some chargers are small and lightweight, making them easy to take with you on the go, while others are larger and heavier.

Compatibility: Make sure the charger is compatible with your EV. Check the input and output specifications of the charger and ensure that it is compatible with your vehicle's charging port. Safety features: Look for a charger that has built-in safety features such as over-current, over-voltage, and over-temperature protection. These features will help protect your EV's battery and charging system.

Durability: Portable EV chargers are designed to be used on the go, so look for a charger that is built to last and can withstand the wear and tear of travel.

Smart features: Some EV chargers come with an app that allows you to manage charging, set schedules, track charging costs, and view the miles driven. These smart features can be useful if you want to monitor charging status while away from home, or if you want to reduce electric bills by scheduling charging during off-peak hours.

Cable Length: Be sure to choose an EV charging cable that is long enough to reach the charge port of your car, as EV chargers come with cables of varying lengths, with 5 meters being the default.

EV Charger Technical Data

Unit Name

Portable Electric Vehicle Charging Gun

Input Voltage

110-240V

Rated Power

3.5KW

7KW

Adjustable Current

16A, 13A, 10A, 8A

32A, 16A, 13A, 10A, 8A

Power Phase

Single Phase, 1 Phase

Charging Port

Type GBT, Type 2, Type 1

Connection

Type GB/T, Type 2 IEC62196-2, Type 1 SAE J1772

WIFI +APP

Optional WIFI + APP Allows to Remotely Monitor or Control Charging

Charge Schedule

Optional Charge Schedule Reduce Electric Bills at Off-peak Hours

Built-in Protections

Protect against Overvoltage, Overcurrent, Overcharge, Overload, Electric Leakage, etc.

LCD Display

Optional 2.8-inch LCD shows charging data

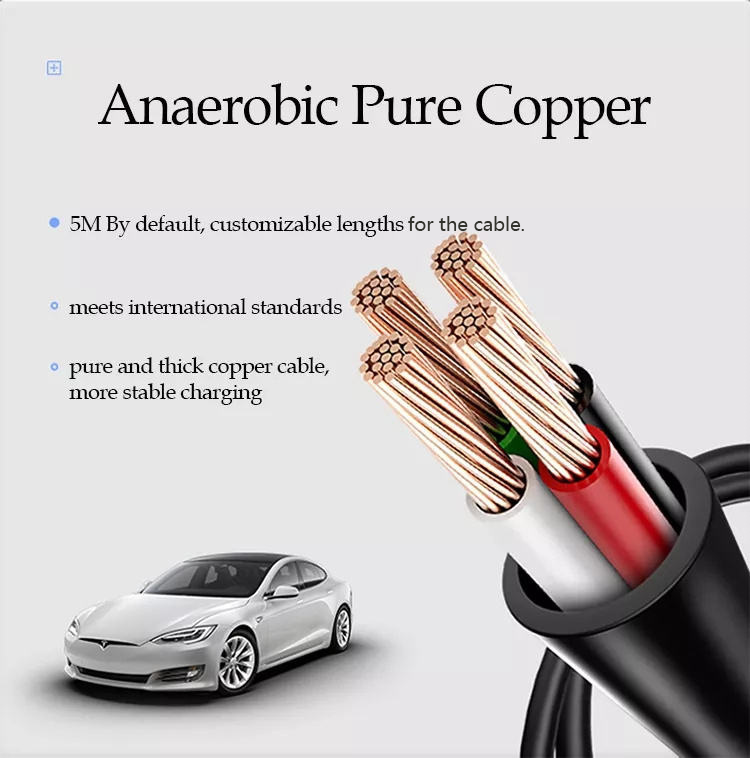

Cable Length

5 meters by default or customization

IP

IP65

Power Plug

normal schuko EU plug,

US, UK, AU, GBT plug, etc.

industrial EU plug

or NEMA 14-50P, 10-30P

Car Fitment

Seat, VW, Chevrolet, Audi, TESLA M., Tesla, MG, Hyundai, BMW, PEUGEOT, VOLVO, Kia, Renault, Skoda, PORSCHE, VAUXHALL, Nissan, Lexus, HONDA, POLESTAR, Jaguar, DS,etc.

Why choose our EV chargers?

Remote control: The optional WIFI + App feature allows you to remotely control your portable EV charger using the Smart Life or Tuya app. This feature allows you to monitor charging progress, start or stop charging, adjust power or current, and access charging data records using a WIFI, 4G or 5G network. The app is available for free on the Apple App Store and Google Play for both Android and iOS devices.

Cost-effective: This portable EV charger has a built-in "Off-peak Charging" feature that allows you to schedule charging during hours with lower energy prices, helping you reduce your electric bills.

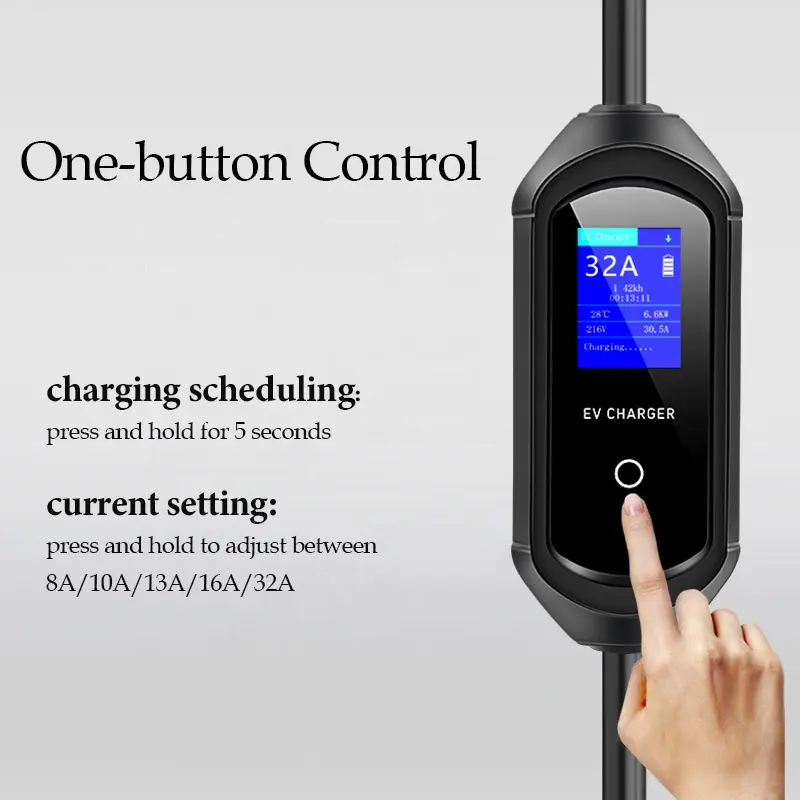

Portable: This portable EV charger is perfect for travel or visiting friends. It has an LCD screen that displays charging data and can be connected to a normal Schuko, EU Industrial, NEMA 10-30, or NEMA 14-50 outlet.

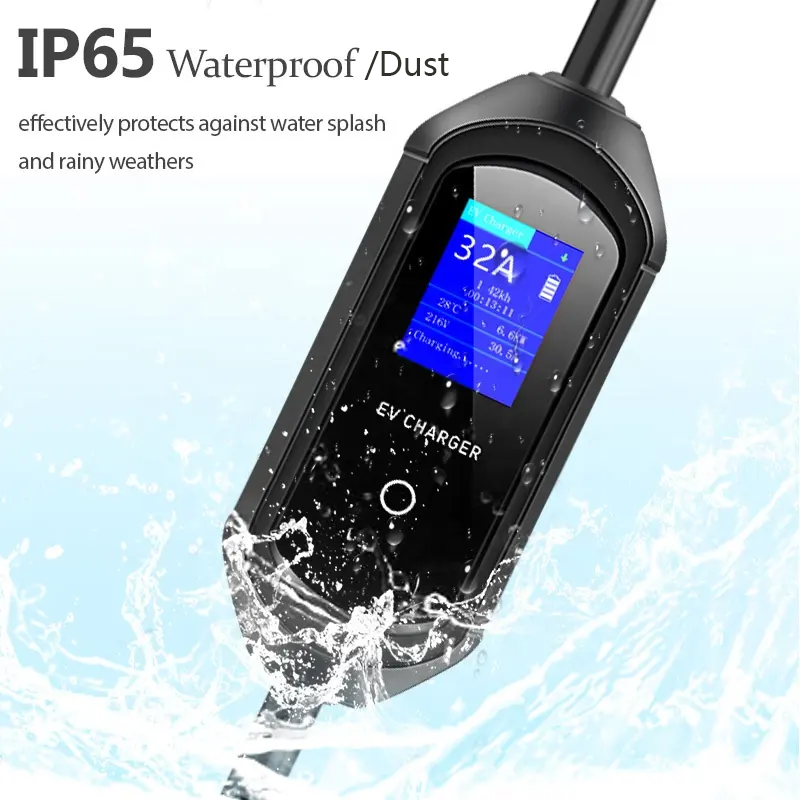

Durable and Safe: Made of high strength ABS material, this portable EV charger is built to last. It also has multiple protection measures in place for added safety, including over-current, over-voltage, under-voltage, leakage, overheating, and IP65 waterproof protection.

Compatible: Lutong EV chargers are compatible with a wide range of electric and plug-in hybrid vehicles, and meet GBT, IEC-62196 Type 2 or SAE J1772 standards. Additionally, the electric current can be adjusted to 5 levels (32A-16A-13A-10A-8A) if power supply is insufficient.
